Designed for insulation of copper and aluminum busbars- for electrical substations and switchgear cabinets. Can be used for exterior installations

Shrink ratio: 2.5:1

Operating voltage: 35 kV

Material: polyolefin, halogen-free «HF»

Analogs: BPTM (Raychem); BBI (3M)

Resistant to the phenomenon of tracking and UV radiation

High dielectric strength

Color: brick red

The use of tubes ТТШ allows shortening the distance between phase busbars and significantly reducing the dimensions of the device

Protects electrical busbars against chemical corrosion

Protects equipment from short circuits in case of contact of electrical devices with animals and birds

Applications：

The tubing manufactured with special technology, is very suitable for applications in power cable joints up to 36kV.

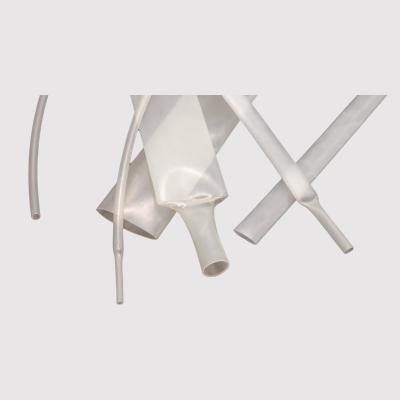

COTRAN PVDF175 tube is transparent, thin wall PVDF (polyvinylidene fluoride) heat shrink tube designed for electronic, automotive and military applications requiring protection and see-through inspection in aggressive environments.

Special designed to meet the requirements of high performance identification of wire and cables in high temperature applications or where extreme resistance to fuels, lubricants and cleaning solvents is required. It is made of special fluoropolymer with excellent electrical, physical, chemical properties and permanent printing properties. Widely used in high-temperature permanent identification industry, military, aerospace, etc.

Special designed to meet the requirements of high performance identification of wire and cable. It is made of superior flame retardant polyolefin with excellent electrical, physical, chemical and printing properties. Permanent printing property can be widely used for high-performance identification of wire and cables in industrial, military, aerospace, etc.

FEP heat shrinkable tubing is made of FEP with excellent 200℃ high-temperature performance, chemical resistance, high insulation and excellent mechanical properties. FEP has excellent abration resistance and excellent clarity. Designed to provide insulation and mechanical protection in severe chemical and thermal environments. Widely used in electronic, aerospace, military and communication fields.

Product introduction

Made of modified radiation crosslinked elastomer, it has excellent resistance to diesel oil, chemical agents, high temperature fluids, long-term heat resistance and wear resistance. It is used for the protection of military or automotive cable terminals, separation joints, etc., and the working temperature range of the cable harness is wide, and the environment of diesel, aviation fuel, hydraulic oil, lubricating oil and other fluids is required.

COTRAN HMWT medium wall heat shrinkable tube is made from radiation crosslinked polyolefin. Specifically designed formulation makes the tubing to have outstanding physical, chemical and electrical properties, and also meet the requirement of RoHS and other environment concerned standards. It is designed for applications to seal and protect electrical splices, cable terminations and joints where electrical insulation and water proof are required. 3:1 shrink ratio allows it easily fit over irregular shape and large connectors.

COTRAN HHWT co-extruded heavy wall heat shrinkable tubing with hot melting adhesive is made from radiation crosslinked polyolefin. Specifically designed formulation makes the tubing to have outstanding physical, chemical and electrical properties, and also meet the requirement of RoHS and other environment concerned standards. It is designed for applications to seal and protect electrical splices, cable terminations and joints where electrical insulation and water proof are required. 3:1 shrink ratio allows it easily fit over irregular shape and large connectors.
