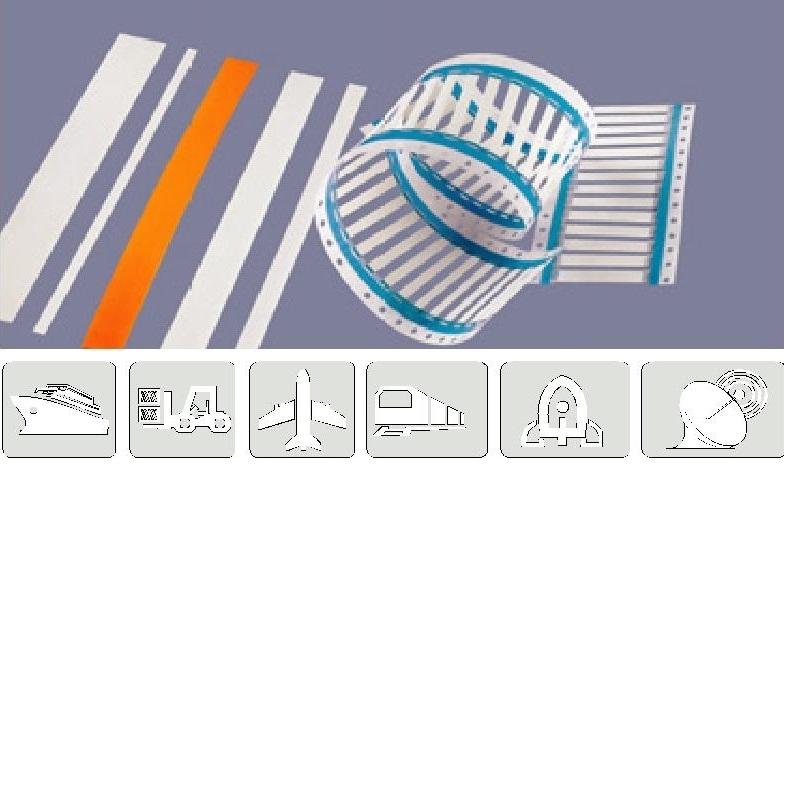

COTRAN GHT 225 Military Grade High-temperature Resistant Heat Shrinkable Identification Sleeves

Special designed to meet the requirements of high performance identification of wire and cables in high temperature applications or where extreme resistance to fuels, lubricants and cleaning solvents is required. It is made of special fluoropolymer with excellent electrical, physical, chemical properties and permanent printing properties. Widely used in high-temperature permanent identification industry, military, aerospace, etc.

Product Features


  • Shrink ratio 2:1
  • Military grade
  • High continuous operating temperature.
  • Excellent printing property, permanent identification.
  • Highly flame-retardant.
  • Excellent fluids resistance.
  • Excellent electrical, physical, chemical and printing properties.
  • RoHS and REACH compliant.
  • Operating temperature: -55℃~225℃
  • Minimum shrink temperature:135℃
  • Minimum fully recovery temperature: 200℃
  • Meet SAE AS81531, MIL-STD-202.
  • Standard color: White(-9), Yellow(-4)
  • Other colors are available upon request.


Technical Properties


Property

Requirement

Test Method

Typical data

Longitudinal shrinkage

≤10%

ASTM D2671

≤5%

Tensile strength

17.3MPa Min.

ASTM D638

≥24MPa

Elongation at break

200% min.

ASTM D638

≥300%

Elongation after aging(225℃, 168hrs)

100% min.

ASTM D638

≥200%

Heat shock(275℃, 4hrs)

No crack

ASTM D2671

No crack

Low-temperature flexibility(-55℃, 4hrs)

No crack

ASTM D2671

No crack

Dielectric voltage withstand

2500V, 60sec, no breakdown

ASTM D2671

No breakdown

Volume resistivity

1011Ω.cm min.

ASTM D876

≥1012Ω.cm

Corrosion

No corrosion

ASTM D2671

No corrosion

Flammability

Self-extinguishing within 15 seconds

AMS-DTL-23053

pass

Printing performance

50 rubs, legible 30 strokes, legible

SAE AS8131, MIL-STD-202

pass

Fluids resistance(23℃, 24hrs)

Printing legible

SAE AS81531

pass

Specification


Size

As supplied (mm)

After recovered (mm)

Recommended use range (mm)

inch

mm

Inside Diameter (min.)

Inside Diameter (max.)

(max.)

3/32

2.4

2.4

1.2

1.3~2.3

1/8

3.2

3.2

1.6

1.7~3.1

3/16

4.8

4.8

2.4

2.5~4.7

1/4

6.4

6.4

3.2

3.3~6.3

3/8

9.5

9.5

4.8

4.9~9.0

1/2

12.7

12.7

6.4

6.6~12.0

3/4

19.1

19.1

9.5

10.0~18.5

1

25.4

25.4

12.7

13.0~24.5

1-1/2

38.1

38.1

19.1

21.0~37.0

2

50.8

50.8

25.4

27.0~48.0
