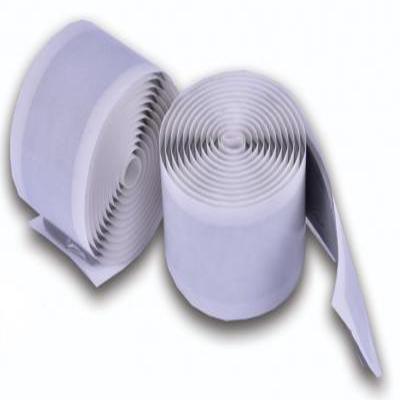

KC87 Waterproof Insulation Tape

◆ Weather resistance

◆ High flexibility

◆ High elongation at break

KC80-S cable insulation sealing protective pad is a self-adhesive sheet made of EPR rubber and butyl mastic, which has excellent weather resistance, wear resistance, insulation, waterproof and other properties. It is mainly used for the repair of cable outer sheath, the coating of power fittings, insulation protection and other scenarios. It provides excellent waterpoofing performance and temperature stability. Operating temperature rated to 90°C. Emergency overload rating to 130°C.

◆ High tensile strength and elongation rate.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Operation and installation easily.

◆ RoHS 2011/65/EU(2015/863/EU) compliant.

◆ various colors are available.

1. The body of joint is made of imported silicone rubber with good quality, so it is with high strength, elasticity and tear resistance as well as excellent thermal

aging resistance.

2. The body of joint has integral pre-fabricate structure with high voltage shielded, stress cone and insulating injection pressed integration, so it has excellent properties and easy to test as well as install.

3. The body of joint is analized and computed optimization by finite element software, so it has more resonable field-intensity distribution and high insulation safety margin.

4. The body of insulating joint and straight through joint is the same, the d ifference is just the handling of shielding on-site installation, insulating joint with one side insulated and the rest shielded while staight through joint full shielded.

5. The joint has completely sealed structure with high mechanical strength and good sealing performance.

6. Joint protecting is made of insulating copper case with high-intensitive T2 copper, and the moulded high-density PE material of its external surface is used for insulation and anti-corrosion with good mechanical protection and permanent waterproof sealing performance, which ensure the joint to run safely and reliably in the long-term under harsh environment.In addition, it can equip glass fiber reinforced plastic protective box as a strengthen waterproof measure accordingly.

7. Special installer tools make the installation more convenient.

The shear bolt connectors are intended for stranded and solid aluminum and copper cable, low voltage and medium voltage up to 36 kV.

They comprise cable areas 10-400 mm² even bigger for sector cable. There is also a screw sleeve for branches up to a total of 100 mm². The joint with the conductor is achieved by the screws in the connector or terminal being tightened to a predetermined torque.

KC3000 Moisture proof sealing material is widely used for moisture proof sealing in distribution control cabinet, RMU, HV/LV switch cabinet, cable branch box, terminal box, pad-mounted transformer, mechanism operation box, assembly control unit, which has low viscosity, good fluidity and easy penetration, resistant to natural freeze-thaw cycle and all kinds harsh environment, while no deformation, no deterioration, no cracking.

With a variety of metal materials, cable sheath material can be closely bonded and not corroded, but also effectively prevent small animals from underground into the cabinet, reduce safety risks; to realize the closed cabinet moisture proof, prevent cable interlayer or channel from moisture, to provide reliable protection for production and operation equipment.

Cotran cold shrink terminations (indoor/outdoor) are precisely designed to meet the parameters of international cable and cable accessories standards such as CENELEC HD 629.1 S1, IEEE-48 class 1, IEEE-404, IEC60502. Our cold shrink terminations offers reliable and consistent performance for longer service life. We have designed our cold shrink terminations for single core and 3 cores extruded UA, SWA/STA, CWS/CTW cable through 36kV.
