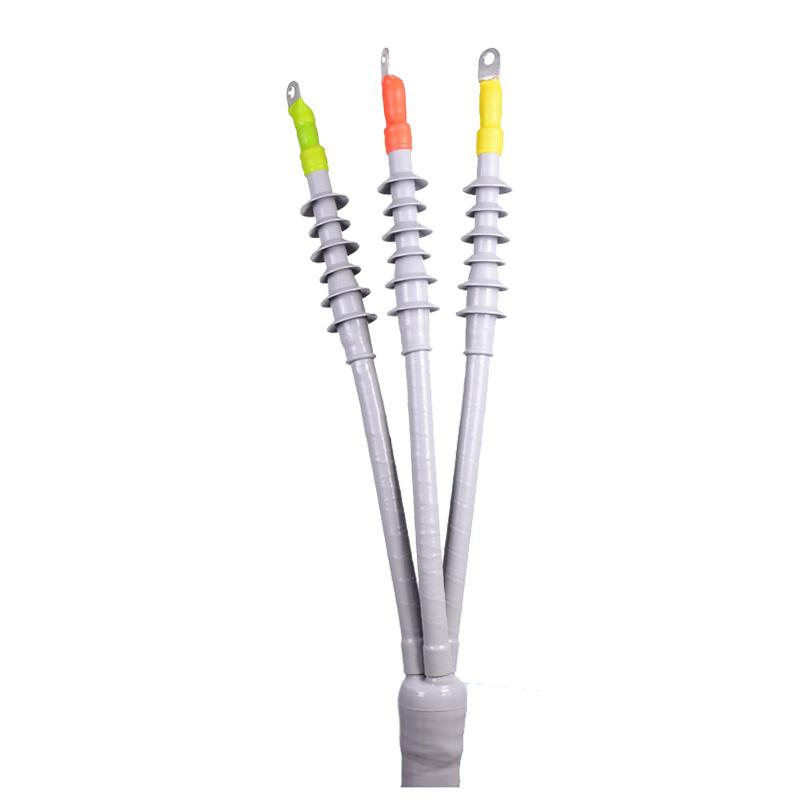

Cold Shrink Cable Accessories 10-36KV

Cotran cold shrink terminations (indoor/outdoor) are precisely designed to meet the parameters of international cable and cable accessories standards such as CENELEC HD 629.1 S1, IEEE-48 class 1, IEEE-404, IEC60502. Our cold shrink terminations oﬀers reliable and consistent performance for longer service life. We have designed our cold shrink terminations for single core and 3 cores extruded UA, SWA/STA, CWS/CTW cable through 36kV.

Inquiry now

product introduction

Main Kit Components

Termination body	Cold shrink tubes	Breakout	Braid
Spring roll	Sealants	Instruction

Cold Shrink Straight Joints

Cotran cold shrink straight through joints are precisely designed to meet the parameters of international cable and cable accessories standards such as CENELEC HD 629.1 S1, IEEE-48 class 1, IEEE-404, IEC60502. Our cold shrink straight through joints oﬀers reliable and consistent performance for longer service life. We have designed our cold shrink straight joints for single core and 3 cores extruded UA, SWA/STA, CWS/CTW cable through 36kV.

Main Kit Components

Joint body	Metal shielding mesh	Armor tape	Waterproof tape
Spring roll	Spring roll	Sealants	Instruction

Product Features

Safety: Without using torches or any auxiliary tools.
Stability: The geometric stress cone and insulator of cold-shrink terminations keep the active pressure and steady long-term operation to cable.
Wide usage: Applying to high-altitude area, cold area, humid area, salt mist area and seriously polluted area.
Small size: Smallish cold-shrink terminations can minimize stripping distance effectively.

Technical Properties

Property	Typical data
Property	15kV(8.7/15kV)	24kV ( 12/20kV)	30kV (18/30kV)	36kV (26/35kV)
AC withstand(under rain)	35KV/1min	48KV/1min	72KV/1min	104KV/1min
AC withstand(without rain)	39KV/1min	54KV/1min	81KV/1min	117KV/1min
Impulse withstand	±95KV/10times	±125KV/10times	±170KV/10times	±200KV/10times
DC withstand	35KV/15min	48KV/15min	72KV/15min	104KV/15min
AC withstand	35KV/4h	48KV/4h	72KV/4h	104KV/4h
Partial discharge test	10Pc(1.73Uo)	10Pc(1.73Uo)	10Pc(1.73Uo)	10Pc(1.73Uo)

Selective Chart

Product	Specification		Size of Conductor
	15kV(8.7/15kV)	24kV (12/20kV)		(mm2)
3-cores indoor termination kit	CT-15-LN-3/1	CT-24-LN-3/1		25-50
	CT-15-LN-3/2	CT-24-LN-3/2		70-120
	CT-15-LN-3/3	CT-24-LN-3/3		150-240
	CT-15-LN-3/4	CT-24-LN-3/4		300-400
	CT-15-LN-3/5	CT-24-LN-3/5		500-800
3-cores outdoor termination kit	CT-15-LW-3/1	CT-24-LW-3/1		25-50
	CT-15-LW-3/2	CT-24-LW-3/2		70-120
	CT-15-LW-3/3	CT-24-LW-3/3		150-240
	CT-15-LW-3/4	CT-24-LW-3/4		300-400
	CT-15-LW-3/5	CT-24-LW-3/5		500-800
3-cores straight through joint	CT-15-LJ-3/1	CT-24-LJ-3/1		25-50
	CT-15-LJ-3/2	CT-24-LJ-3/2		70-120
	CT-15-LJ-3/3	CT-24-LJ-3/3		150-240
	CT-15-LJ-3/4	CT-24-LJ-3/4		300-400
	CT-15-LJ-3/5	CT-24-LJ-3/5		500-800
Single core indoor termination kit	CT-15-LN-1/1	CT-24-LN-1/1		25-50
	CT-15-LN-1/2	CT-24-LN-1/2		70-120
	CT-15-LN-1/3	CT-24-LN-1/3		150-240
	CT-15-LN-1/4	CT-24-LN-1/4		300-400
	CT-15-LN-1/5	CT-24-LN-1/5		500-800
Single core outdoor termination kit	CT-15-LW-1/1	CT-24-LW-1/1		25-50
	CT-15-LW-1/2	CT-24-LW-1/2		70-120
	CT-15-LW-1/3	CT-24-LW-1/3		150-240
	CT-15-LW-1/4	CT-24-LW-1/4		300-400
	CT-15-LW-1/5	CT-24-LW-1/5		500-800
Single core straight through joint	CT-15-LJ-1/1	CT-24-LJ-1/1		25-50
	CT-15-LJ-1/2	CT-24-LJ-1/2		70-120
	CT-15-LJ-1/3	CT-24-LJ-1/3		150-240
	CT-15-LJ-1/4	CT-24-LJ-1/4		300-400
	CT-15-LJ-1/5	CT-24-LJ-1/5		500-800

Product	Specification		Size of Conductor
Product	30kV(18/30kV)	35kV(26/35kV)	(mm2)
3-coresindoor termination kit	CT-30-LN-3/1	CT-35-LN-3/1	35-70
	CT-30-LN-3/2	CT-35-LN-3/2	95-185
	CT-30-LN-3/3	CT-35-LN-3/3	240-400
	CT-30-LN-3/4	CT-35-LN-3/4	500-800
3-coresoutdoor termination kit	CT-30-LW-3/1	CT-35-LW-3/1	35-70
	CT-30-LW-3/2	CT-35-LW-3/2	95-185
	CT-30-LW-3/3	CT-35-LW-3/3	240-400
	CT-30-LW-3/4	CT-35-LW-3/4	500-800
3-coresstraight through joint	CT-30-LJ-3/1	CT-35-LJ-3/1	35-70
	CT-30-LJ-3/2	CT-35-LJ-3/2	95-185
	CT-30-LJ-3/3	CT-35-LJ-3/3	240-400
	CT-30-LJ-3/4	CT-35-LJ-3/4	500-800
Single coreindoor termination kit	CT-30-LN-1/1	CT-35-LN-1/1	35-70
	CT-30-LN-1/2	CT-35-LN-1/2	95-185
	CT-30-LN-1/3	CT-35-LN-1/3	240-400
	CT-30-LN-1/4	CT-35-LN-1/4	500-800
Single coreoutdoor termination kit	CT-30-LW-1/1	CT-35-LW-1/1	35-70
	CT-30-LW-1/2	CT-35-LW-1/2	95-185
	CT-30-LW-1/3	CT-35-LW-1/3	240-400
	CT-30-LW-1/4	CT-35-LW-1/4	500-800
Single corestraight through joint	CT-30-LJ-1/1	CT-35-LJ-1/1	35-70
	CT-30-LJ-1/2	CT-35-LJ-1/2	95-185
	CT-30-LJ-1/3	CT-35-LJ-1/3	240-400
	CT-30-LJ-1/4	CT-35-LJ-1/4	500-800
