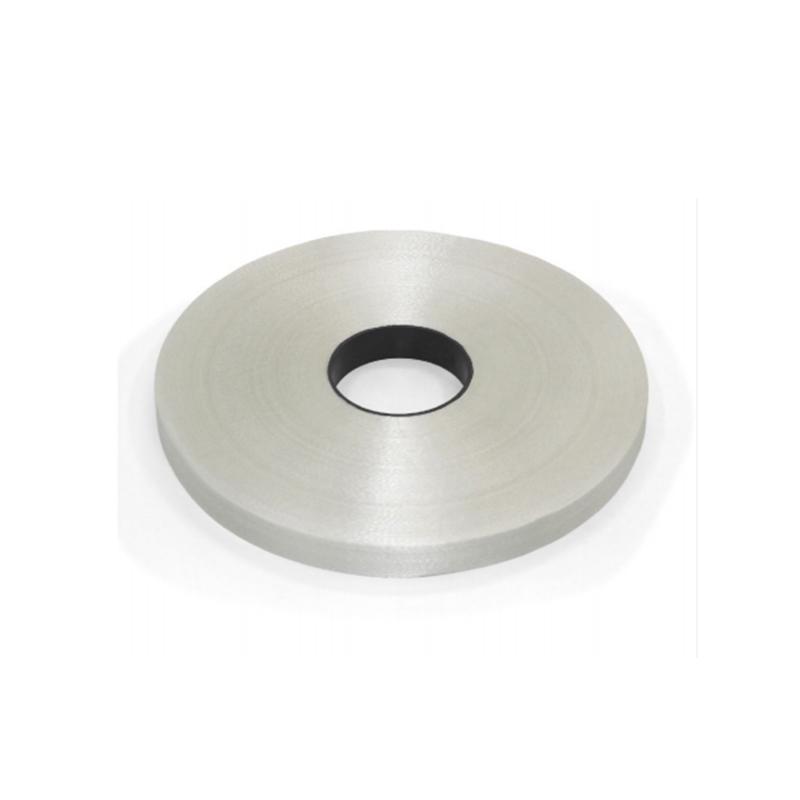

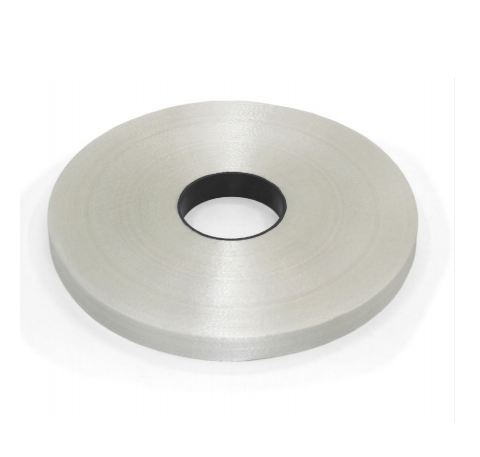

KC58 Epoxy Glass Fiber Electrical insulating Tape

KC58 epoxy glass fiber electrical insulating tape is a strip of insulating binding material of a certain width, impregnated with a high temperature heat curing epoxy resin by a unidirectional, continuous twist, alkali-free glass fiber yarn after treatment. This tape has good softness and viscosity, opened in a network structure, easy to roll back, no loose wire, no overlap. The product has high strength, impact resistance, high modulus, low elongation, no hysteresis and no eddy current loss and other excellent properties.

Inquiry now

product introduction

Application

Mainly used for fastening transformer core and coil. Winding and binding materials for motors, traction motors, generators, arresters, transformers, DC motors, welding machines, high pressure containers.

Technical Properties

Property	Unit	Requirements
Total Thickness	mm	0.20
Tensile strength before curing	N/cm	Min. 750
Volatile matter content	%	Max. 2.0
Resin content	%	26±2
Soluble resin content	%	Min.90
Dielectric Breakdown	kV/mm	Min. 12

Specification

8~50mm*100m/200m

Note: Other size is available on request.

KC58-155 indicates that the heat resistance rating of the tape is class F (155℃)

KC58-180 indicates that the heat resistance rating of the tape is class H (180℃)

Shelf life and Storage

KC58 epoxy glass fiber electrical insulating tape should be stored in the environment below 30℃, the ambient temperature is higher than 30℃, should be stored in the refrigerator.
