Heat Shrink High Insulation Tube (11~36kV)

1. The body of joint is made of imported silicone rubber with good quality, so it is with high strength, elasticity and tear resistance as well as excellent thermal

aging resistance.

2. The body of joint has integral pre-fabricate structure with high voltage shielded, stress cone and insulating injection pressed integration, so it has excellent properties and easy to test as well as install.

3. The body of joint is analized and computed optimization by finite element software, so it has more resonable field-intensity distribution and high insulation safety margin.

4. The body of insulating joint and straight through joint is the same, the d ifference is just the handling of shielding on-site installation, insulating joint with one side insulated and the rest shielded while staight through joint full shielded.

5. The joint has completely sealed structure with high mechanical strength and good sealing performance.

6. Joint protecting is made of insulating copper case with high-intensitive T2 copper, and the moulded high-density PE material of its external surface is used for insulation and anti-corrosion with good mechanical protection and permanent waterproof sealing performance, which ensure the joint to run safely and reliably in the long-term under harsh environment.In addition, it can equip glass fiber reinforced plastic protective box as a strengthen waterproof measure accordingly.

7. Special installer tools make the installation more convenient.

Designed for insulation of copper and aluminum busbars- for electrical substations and switchgear cabinets. Can be used for exterior installations

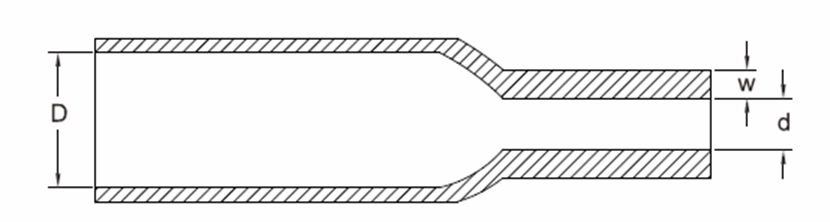

Shrink ratio: 2.5:1

Operating voltage: 35 kV

Material: polyolefin, halogen-free «HF»

Analogs: BPTM (Raychem); BBI (3M)

Resistant to the phenomenon of tracking and UV radiation

High dielectric strength

Color: brick red

The use of tubes ТТШ allows shortening the distance between phase busbars and significantly reducing the dimensions of the device

Protects electrical busbars against chemical corrosion

Protects equipment from short circuits in case of contact of electrical devices with animals and birds

Straight Through Jointing Kit offered provide for suitable insulating and sealing performance and feature use of heat shrinkable and resin.

Cotran heat shrink terminations (indoor/outdoor) are precisely designed to meet the parameters of international cable and cable accessories standards such as CENELEC HD 629.1 S1, IEEE-48, IEEE-404, IEC60502. Our heat shrink terminations offers reliable and consistent performance for longer service life. We have designed our heat shrink terminations for single core and 3 cores extruded UA, SWA/STA, CWS/CTW cable through 36KV.

Cotran heat shrink terminations and joints are composed of a series of pre-expanded adhesive lined heat shrink tubes and necessary accessories. Heat shrink and provide excellent waterproof seal and electrical insulation. The terminations and joints are designed to be suitable for SWA/UA, XLPE/PVC/PILC, S/C, multi-core cable rated to 0.6/1kV.
