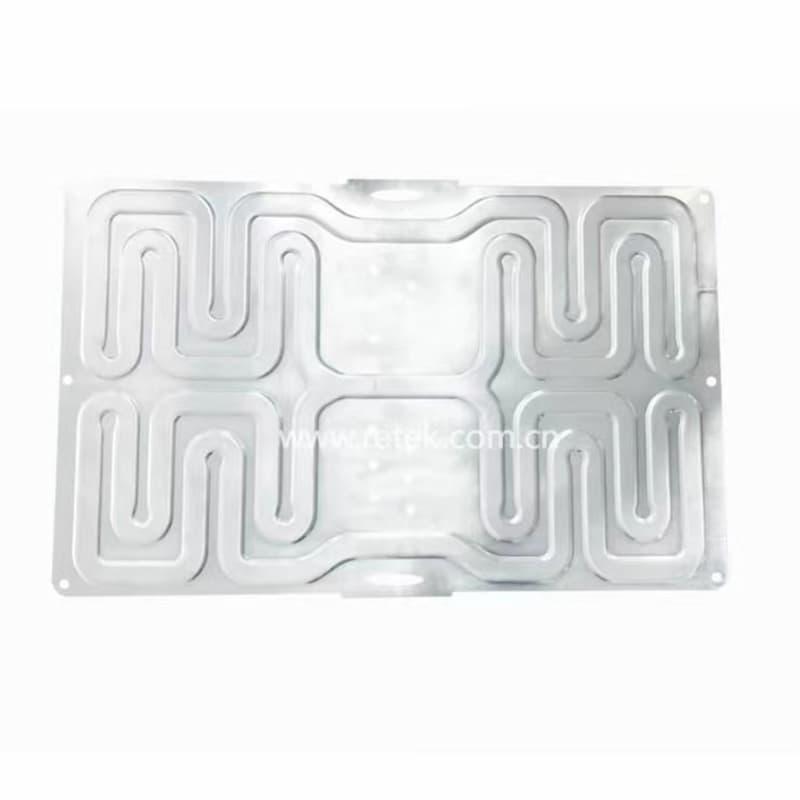

The energy storage roll bonded liquid cooling plate can assure the overall sealing of the upper and lower plates through hot rolling, raise the temperature of the material to the temperature required for super-plasticity, relying on the super-plastic forming technology, the cooling plate can break through the original bottleneck of original molding depth and achieve a deeper degree of blowing forming.
Specification
|
Item Name |
Energy storage roll bonded liquid cooling plate |
|
Base Material |
3003, 3003MOD or customized aluminum plate |
|
Product Size |
Customized size, Lmax 2,000MM, Wmax 1,100MM |
|
Product Thickness |
0.8~3.0MM or customized |
|
Deformation Pressure |
≥0.2 Mpa |
|
Burst Pressure |
≥1.0 Mpa |
|
Residual Impurity |
≤15 Mg/L |
|
Product Composition |
Cover plate, print plate, water connectors |
|
Main Process |
Hot rolling, helium leak detection, flatness check, insulation coating |
|
Annual Capacity |
1.5Million PCS based on product width 1,100MM |
|
Quality Certificate |
IATF16949, ISO9001, ISO14001, ISO45001 |
|
Main Application |
Energy Storage System (ESS), Electric Vehicle (EV), New Energy Vehicle |
Advantages
◆ Have professional R&D team with rich experience in the thermal management and product technology.
◆ Provide OEM/ODM service to design finalization and optimization according to different client requirements.
◆ Provide sample service and complete samples within about three weeks.
◆ Have ability to conduct technology innovation, R&D investment and laboratory construction.
◆ Have the overall product process, most advanced equipment and high production automation.
◆ Expand production lines and increase capacity to meet delivery time of increased orders from various customers.
FAQ
Q: Are you manufacturer or trading company for liquid cooling plates or tubes?
A: Our company Cotran is one of well-known Chinese manufacturers, who acquired Suzhou ReTek Cooling Technology Co., Ltd. in 2020 to seize the development opportunities of 5G telecommunication, new energy vehicles industry and energy storage industry and further enrich the cooling series product categories. ReTek is professional on manufacturing liquid cooling plates and tubes for EV and ESS, it focuses on the new energy vehicles and energy storage and are committed to providing innovative, safe and efficient solutions for thermal management.
Q: What process technology you have to make liquid cooling plates or tubes?
A: We have stamping and brazing process, roll bonded process and aluminum extrusion process etc.
Q: What cooling ways you have for liquid cooling plates or tubes?
A: We have two different cooling ways, one is liquid cooling which uses water/glycol as the coolant and the other is direct cooling which use refrigerating fluid.
Q: Can you support customized design for liquid cooling solutions?
A: Yes, sure. We have professional technical team who is experienced to provide customized design and design optimization for liquid cooling solutions.
Q: Can you provide samples of liquid cooling plates or tubes and what is the delivery date for samples?
A: Yes, we can provide samples with charge as per customized design. It usually takes about three weeks to delivery samples after the design are finally confirmed.
